Applying colours and Materials in Rhino for Revit Import

Following on from my previous post about importing Rhino materials in Revit 2017.1   here is a brief description on how to set up the colours/materials in Rhino:

I am new to using Rhino, so my understanding of the UI and functions is pretty basic but I managed to figure out how to apply colours and materials to objects without reading any manuals.  I am happy to be corrected if there are better ways to do this.

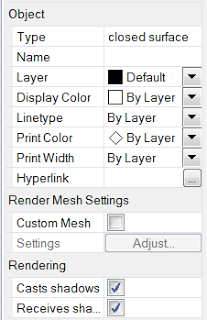

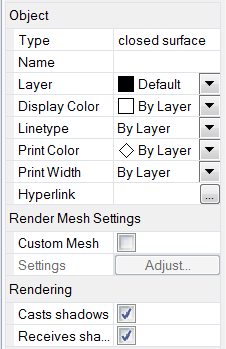

Once you have created an object (or multiple objects), you can select the object and view its properties.  Unless you tell it otherwise, it will be on the ‘Default’ layer, with
Color, Linetype etc set to ‘By Layer’, which means that it will behave
according to the layer settings.  During the new import process, Revit 2017.1 considers the default layer & colour not to be a material.



You can change the layer of the object from the Layer drop-down list, providing you have created new layers

By default, your file most likely will have no layers, so you need to…

Read more
