Keeping on the theme of Dynamo and drawing setup, I had a series of MEP models that I needed to setup that had 2 views that needed to be placed on each sheet, a main view and a smaller inset view.
I started from my sheet generation Dynamo graph and ran through a number of different options to enable to graph to place multiple sheets on views in the correct location.

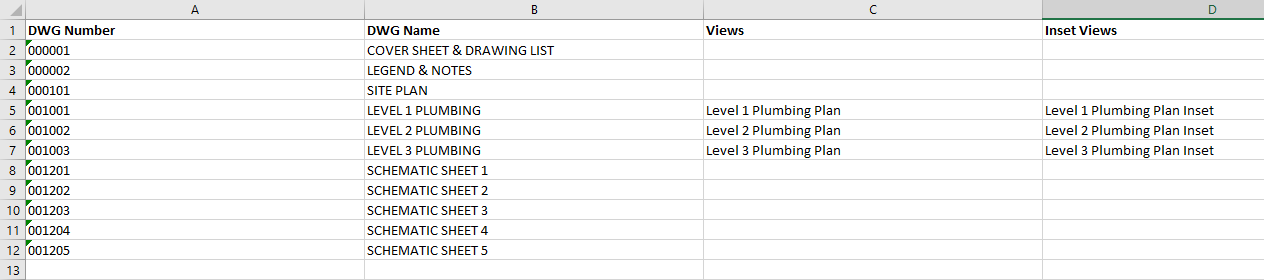

The method I found posed the least problems in the process was to add an extra column to my Excel file for the names of the inset views
As a bit of ground work, I needed to figure out where I wanted my views to be located, so I made up mock sheet with the views placed where I wanted them to sit on the sheet

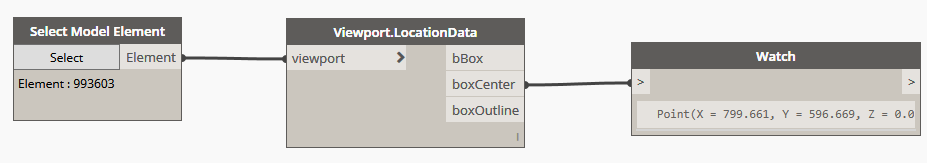

I then threw together a quick graph that allowed me to select the viewport I’ve placed on the sheet with the Select Model Element node and running that through the Rhythm node Viewport.LocationData I can get the centre point of the viewport box. This centre point of each viewport will be the values used when we…
