Engineering Drawing Tutorials for Beginners – 2 | Top View in Engineering Graphics | Dimensioning in Engineering Drawing

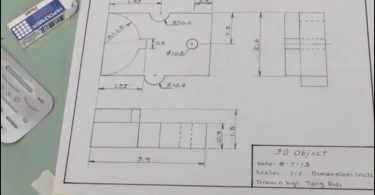

This video shows the use of the basic tools previously introduced while creating a simple, single view technical drawing. Each step for creating the single view drawing is covered and the use of the drawing tools are explained.
This video continues with the single view drawing by explaining the basic process of adding the dimensions to the drawing.
Video created by:
Dr. Terry Baxter
Northern Arizona University, Department of Civil Engineering, Construction Management and Environmental Engineering
Prof. Jin Xuan Liu
Xi’an University of Science and Technology
