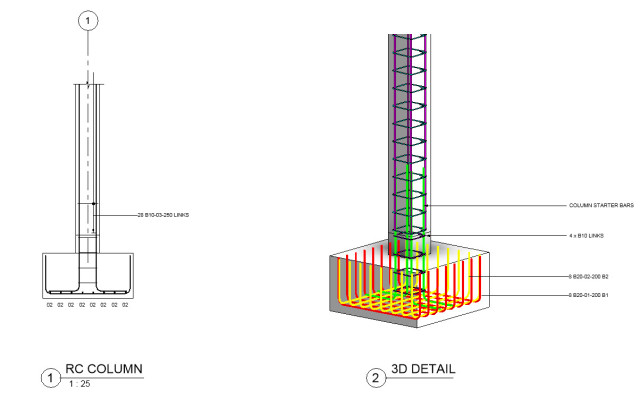

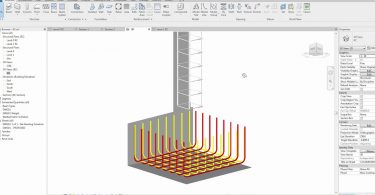

In this short tutorial we will look at the reinforcement of a simple column and foundation. The reinforcement is modelled manually to show you how reinforcement bar is placed in elements. We then schedule the reinforcement to BS8666:2005 and produce a simple drawing.

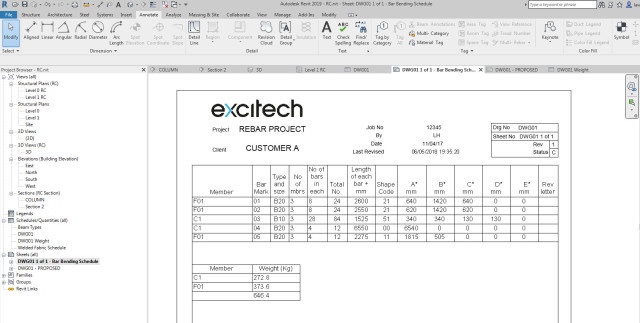

Here is the bending schedule shown below.
The tutorial is using the Excitech Revit RC template but everything else is standard Revit 2019.
Hope you enjoy the tutorial?
