A couple of releases back a set of Dynamo nodes were created to allow the connection between Dynamo and Advance Steel. A recent release sees this plug in upgraded for use with Dynamo 2.0.2.
The tools certainly look promising but could really do with a little more development. At present you can create members, add plates and custom properties which allows for the advanced modelling of members but limited control over connections and Advance Steel Properties.

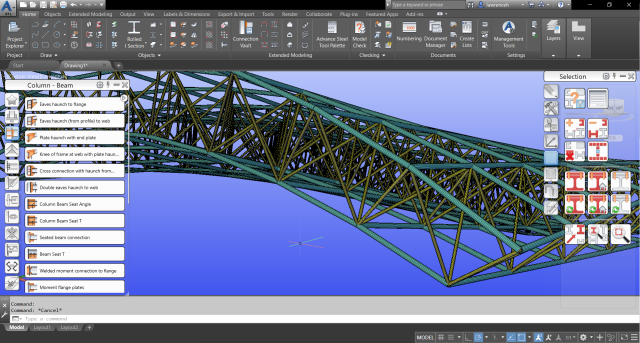

The Dynamo for Advance Steel can be located on the Add-ins Ribbon as shown below.

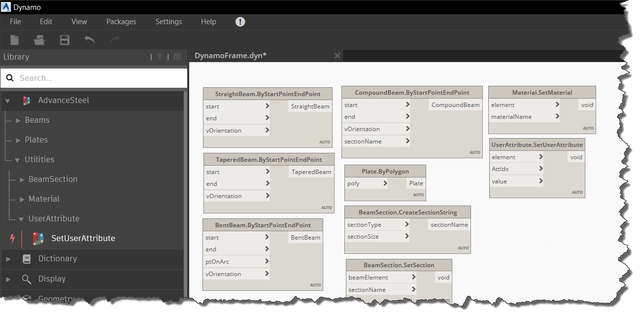

Once Dynamo is running you will find the Advance Steel nodes shown below.
Steel members are created by providing a list of members start and end points and then a vector to describe the Section Orientation. Bear in mind that all Advance Steel members can be generated with the Beam tools. It would have been nice to be able to change the Model Role for each set of members as this would have increased the efficiency when creating larger frames…
