Stepped Steps in Revit Stairs

I had a question recently about how to create a Revit stair that is stepped in plan?  It is actually not that hard to do but the method is not so intuitive – so here are some instructions:

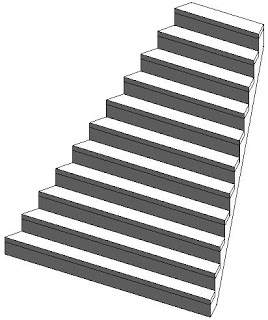

Tapered Stair

For the record, we’ll start with a tapered stair, to get the methodology – as that is very easy:

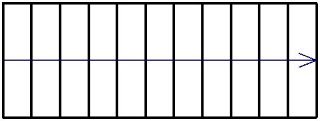

  • Create a stair with a straight run



  • Select the run (in stair edit mode)
  •  Convert the run to a sketch



  • Select the run and ‘Edit Sketch’

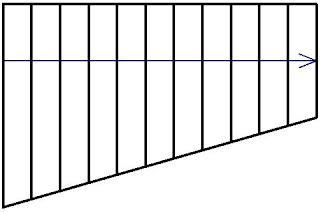

  • Adjust the angle of one or both sides



  • No need to trim the riser lines (providing the boundary lines up with the end risers
  • Finish the sketch and the stair

Stepped Stair

Follow a similar process as the tapered stair to start with:

  • Create a stair with a straight run

  • Select the run (in stair edit mode)
  • Convert the run to a sketch – this stage is not reversible, so you need to be sure about it

  • Select the run and ‘Edit Sketch’
  • The sides and back of each step need to be drawn as ‘Boundary Lines’, which show green in the…

Read more
