I have had a few questions around detailing coordinates of grid intersections with Revit. You may already know that it is tricky to add spot coordinates to each grid intersection as Revit will not ‘snap’ to the grid intersection. You can add reference planes across the grid intersections, but this is quite time consuming and prone to error.

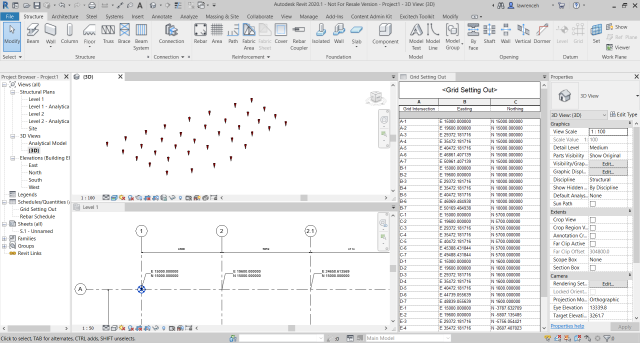

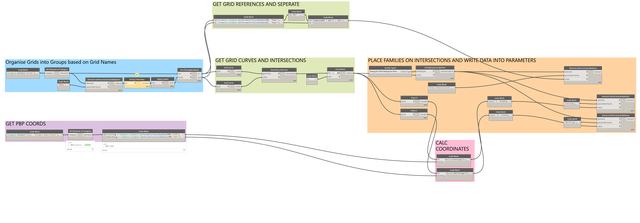

I have created a Dynamo script to place down a setting out family at each grid intersection and record the grid intersection, Easting and Northing at each location. This has the added value of being exposed in Navisworks or an IFC model for a contractor. We can also schedule the coordinates of each grid intersection and present this onto drawings or export to Microsoft Excel for input into site instruments.
See the video below for more!
