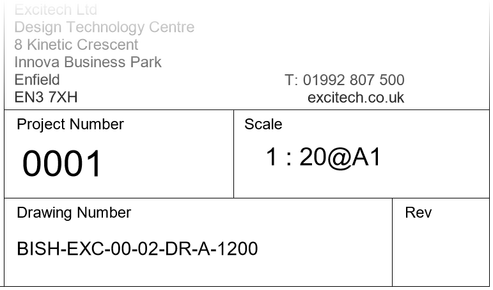

Many of you working with large Revit projects are probably utilising the BIM naming conventions outlined in ISO19650. Just for your reference, the naming system may look similar to the sheet below.

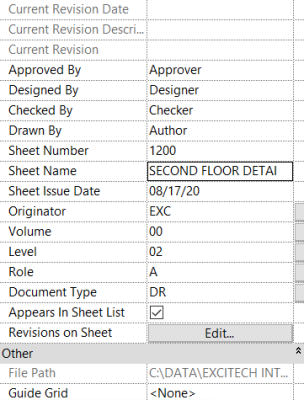

Below is a screen capture of the properties of the sheet, you can clearly see the use of shared parameters to hold the values such as the Originator, Volume,Level and so on.

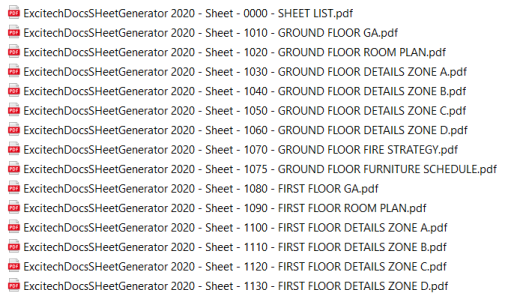

The problem starts when you are required to generate PDFs or DWGs from the Revit project to issue or upload to a Common Data Environment (CDE). The naming convention, of course, needs to comply with ISO19650 but Revit will give you something like the output below:
Fortunately, we can employ Dynamo to rename the documents for us to match with the correct ISO19650 naming convention. The basic process is to collect the ISO19650 shared parameters from the sheet and concatenate these together using hyphens to generate the correct document name. The name is then concatenated with the file path and this forms the new…
