Most people are confused about the Overhead Visibility setting in Revit. It allows you to see very specific categories of Revit families, for elements located between the Cut plane and the Top plane.
This is an excerpt from our HEROIC FAMILIES course for Revit.
Watch the video:
#1- Only 3 family categories are visible when placed above the cut plane
By default, the family instances are only visible in a view if they are below the cut plane.
Only three categories are visible when located above the cut plane: Windows, Casework, and Generic Models.

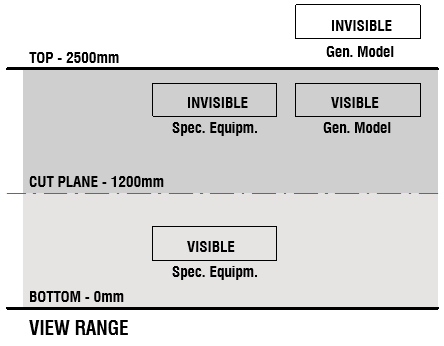

Family instances are always invisible if they are beyond the top plane. This view range elevation graphic might help you understand these concepts:
#2: Place an Invisible Line to display a family above the cut plane
Only 3 categories are visible above the cut planes. What if you really want another category to be displayed? For example, a Specialty Equipment family. Well, there is a workaround. Special thanks to…
